Bollinger B1 Electric Off-Road Vehicle
Electric Off-Road Vehicle
Is off-roading really the place for an electric vehicle and are off-roaders ready for one? Bollinger Motors thinks so, and this B1 is the result.
0:00 / 0:00

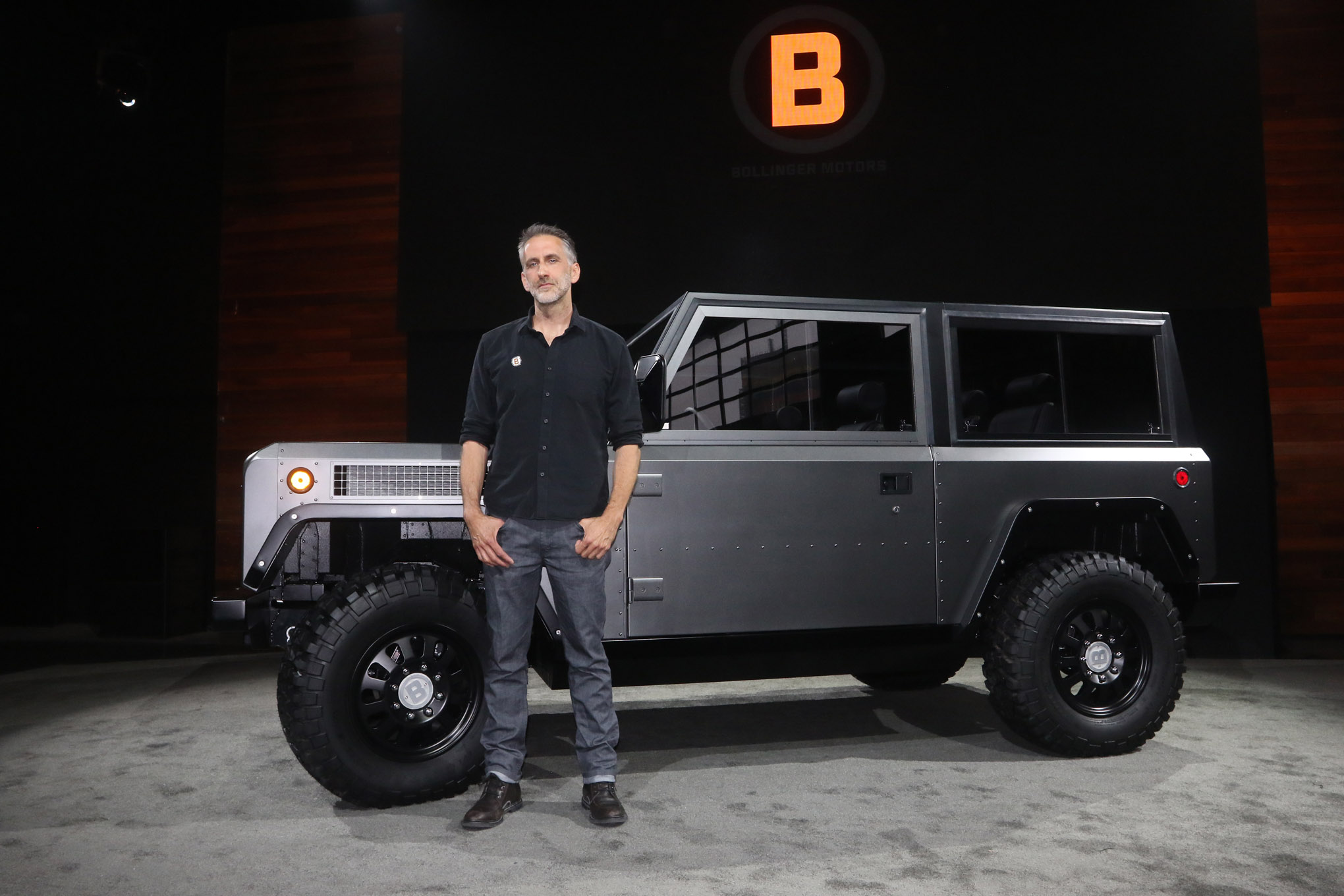

Looking a bit like an old Land Rover Defender, the Bollinger B1 is the brainchild of Robert Bollinger and was developed, designed, and engineered by him and his staff in Hobart, New York. Bollinger, who earned an industrial design degree from Carnegie Mellon University, calls his effort “The world’s first all-electric, all-wheel-drive off/on-road sport utility truck.”
The all-wheel drive comes from the fact that the B1 uses two drive motors, one for the front wheels and one for the rear, to provide propulsion to the electronically locking differentials. There’s also a pair of HI/LO range gearboxes, which provides a full 4x the torque multiplication in LO range. The top speed in the LO setting is 32 mph.
Electric cars are often thought of as slow, but the all-wheel-drive B1 produces (a stated) 360 hp, can do 0-60 in 4.5 seconds and has a top speed of 127 mph. It has a 50/50 weight balance, and the towing capacity is a claimed 6,000 pounds.
Which leads to the real question: How far will it go on a charge? The B1 has a 200 max mile range before charging is required. That charging can be done with either 110 or 220 volts, with it taking 12 hours to fully charge (from fully depleted) in 110 and 7 hours with 220.
Bollinger will be at the 2017 SEMA show and promises that a B1 will be ready for testdrives, so look for an update soon.
Bollinger B1 Specs:
POWERTRAIN
All-Wheel Drive
0-60 in 4.5 seconds
Top Speed 127 mph
360 hp
472 lb-ft of torque
Dual front/rear motor
60 kWh or 100 kWh energy storage
120-mile or 200-mile range
67.4 est. mpg
Charge Time 60 kWh (from fully depleted)
Level 2 (220v): 7 hours DC Fast: 45 min
Charge Time 100 kWh (from fully depleted)
Level 2 (220v): 12 hours DC Fast: 75 min
J1772 (110 & 220) & CHAdeMO (DC Fast) charging ports
CAPACITY
3,900 lbs. total vehicle weight
295 lbs. chassis weight
10.8 power/weight ratio
6,100 lbs. towing capacity
6,100 lbs. payload capacity
10,001 lbs. GVWR
50/50 weight balance
INTERIOR
95 cubic feet total cargo capacity with rear seats removed
EXTERIOR
15.5-inch ground clearance
10-inch wheel travel
56°/33°/53° approach/breakover/departure angle
LT285/70/R17 wheel size front/rear
11.75 inches vented; regenerative; 4-wheel anti-lock inboard discs brakes
105-inch wheelbase
150-inch length
76.5-inch width
73.5-inch height
68-inch rear track
